Pathos - Logos MKII - Integrated Amplifier
Authorised Retailer
Manufacturers Warranty Guaranteed
Fast Delivery Service
Couldn't load pickup availability
- Daily deals
- Return policy
- Payment method
- Help center 24/7
Product Details
*Available finishes: padouk wood or black front panel.
CARE FOR DETAILS
As regards the first kind of solutions adopted in the new Logos we find an increased voltage of anodic polarization of the valves in order to optimize the working point of the same and obtain greater linearity and thus a general improvement of the sound, in particular, an increase of the consistency and definition. Stabilized power supply for preamp valve and a more accurate collocation of electrolytic capacitors throughout the signal path (and in particular close to each mosfet) allow to have a valuable reserve of "quick energy" that while listening they mean better dynamics, detail and sense of rhythm.
A COMFORTABLE LISTENING
Numerous innovations also regarding the practicality of use that they assist pleasantly the owner in the use of the amplifier, we find: volume levels can be stored for each input, the gain differentiation between digital and analog inputs so as to ensure homogeneity of the a level between the different sources used, standby function from the remote control respectful of energy consumption limits imposed by the latest EEC regulations.
DIGITAL MUSIC
The ability to have an optional high-quality DAC 24bit-192Khz integrated into the device enriches the set of connections with the addition of 2 SPIDF digital inputs and 1 USB input, which allow a really meaningful versatility in the management of digital sources and let Logos MkII stand as an ideal amplifier for the use of digital Music.
EXPECTED SNAGS!
A new protection has also been implemented against short circuits and overloads by a “Hall” effect sensor that allows the device to protect itself against shorts caused by speakers and by internal malfunctions, preserving in this case also the speakers and at the same time without diminishing the quality of the musical signal.
PROSE
Logos is a hybrid amplifier of 110W per channel into 8 ohms and 220W into 4 ohms with ECC88 preamp valves, end-stage class A / B Mosfet strongly polarized, fully balanced signal until the valve that allows you to take full advantage of a balanced source as Pathos Digit and Pathos Endorphin, volume control purely resistive analog circuitry with digital control and input and output impedance constant, lamellar transformer resin and encapsulated to zero dispersions, brightness display adjustable and all functions remote controlled.
Technical Specifications
|
Model |
Lògos mkII |
|
Type |
Integrated stereo amplifier, Hybrid technology. Preamplifier stage Tube (2×6922 ECC88), class A Final stage; Mosfet, class AB |
|
Output Power |
2×110 W RMS@8Ohm (Both channel driven) |
|
Frequency response |
5Hz – 140KHz ± 0,5dB |
|
Max input voltage |
6V RMS |
|
Input sensitivity |
500mV RMS (39dB Gain) |
|
Input impedance |
32KOhm unbalanced, 20KOhm balanced |
|
Output polarity |
Non- inverting. Balanced pin 2 + |
|
Volume regulator |
Burr Brown PGA2310 (100 steps) |
|
Damping Factor |
360@8Ohm |
|
THD |
0,02% @ 1W; 0,2% @ 110W |
|
S/N Ratio |
>90dB |
|
Power requirements |
200W @ 100WPC / 130W @ zero volume < 0,5W@standby |
|

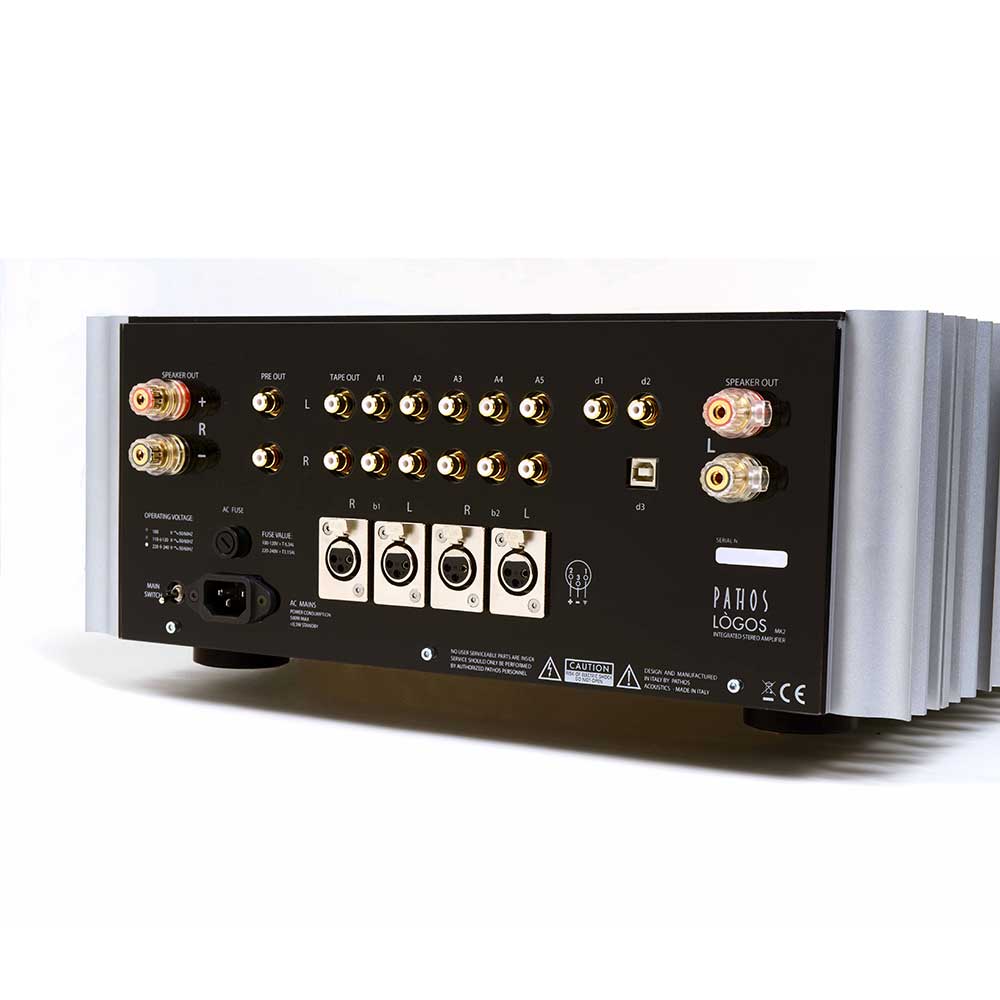

Connections |
|
|
Analogue inputs |
2 balanced XRL line, 5 unbalanced RCA line |
|
Digital inputs |
Installation of (optional) HiDac Mk2 board is required to enable these inputs 1 USB port type “B” for PC, 2 SPDIF coaxial |
|
Driver |
Disponibili per Windows; sistemi Mac e Linux non necessitano di Driver |
|
Outputs |
1 Pre out stereo line, 1 sub out mono line |
|
Dimensions |
|
|
Amplifier |
420mm (D) x 430mm (W) x 170mm (H) |
|
Packed |
600mm (D) x 600mm (W) x 350mm (H) |
|
Weight (net / packed) |
28Kg / 30Kg |
